Clio Dental Digital X-Ray Sensor System


Clio Digital X-Ray Sensor System

Clio Dental Digital X-Ray Sensors Sota

The Clio Digital Dental X-Ray Sensors have Next Generation CMOS technology, fiber optic sensors create 20+ actual line pairs per mm (26.3 theoretical
line pairs per mm).

With our Cliosoft Imaging Software, we can gaurantee our Clio Digital Dental X-Ray images match up or surpass any competing system. We make this promise based on feedback from actual dentists.

Rounded edges allow for maximum patient comfort.

Ideal intraoral sensor width and thinness in two sizes for pedo and adult. 5-Year Limited Warranty


The Clio Digital X-ray Sensor is constructed with special shock absorbers inside the sensor housing to protect components from exterior damage.

One of the few fully water submersible sensors, the Clio Digital Dental Sensor is equipped with a unique sealed rubber polymer interior housing.

Unlike other products, the USB wire of the Clio X-Ray Sensor is fully replacable if damaged. Rest assured with SOTA.

clio Digital Dental X-Ray Sensor System


Clio Digital X-Ray Sensor System

PERFECTED INGENUITY

The Clio Digital X-ray Sensors are designed and manufactured in the world’s leading facility of CCD and CMOS technology for guaranteed highest-grade imaging. These dental sensors have all the features and benefits that ensure a highly reliable product and deliver the best images in the industry. The resolution of our Clio sensors is marginally higher than some of the leading brands, including Dexis. Our innovative x-ray sensor technology allows you to get some of the best images at a considerably lower cost! But don’t believe us – have a look yourself.


Clio Dental X-Ray Sensor Features:

• All New Direct Integration Technology
• Thin sensor hardware with rounded corners for maximum comfort
• Direct USB cable with no docking station
• Repairable USB cable for longevity of sensors
• Fiber optic plate sensors for low-noise ratio
• Largest active area for maximum coverage
• Fully waterproof sensor head with sealed cable and housing design
• USB connector: USB 2.0, USB 3.0
• Sensor Technology - Next Generation CMOS Fiber optic Sensors
• Maximum Gray Levels - 4096 (12-bit)

Clio Digital X-Ray Sensor System

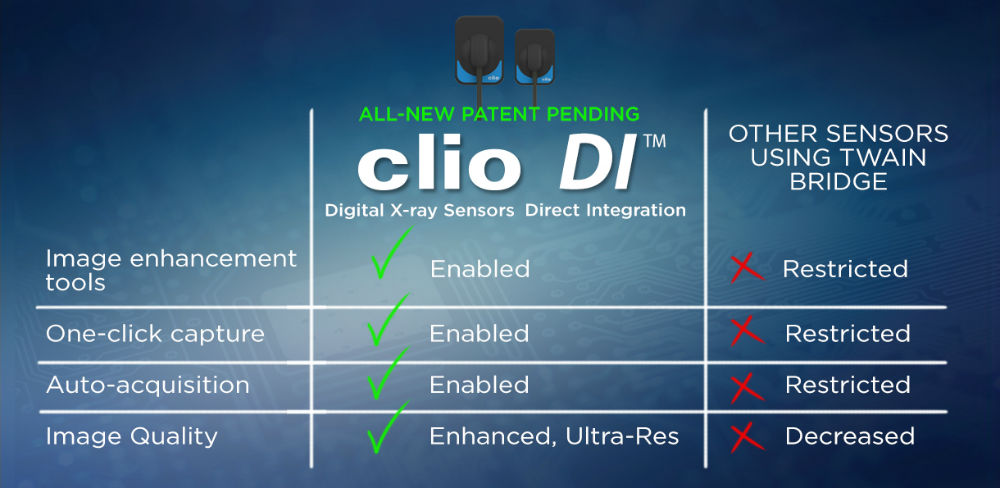

Clio DI Digital X-ray Sensors feature patent-pending technology that provides seamless integration of Clio Digital X-ray sensors into popular imaging software unlike ever before.

Until now, integration of 3rd party sensors into popular imaging software was impossible or required complicated bridging.

Patent-pending Clio DI Technology cuts the hassle out of integration with:

• Ability to replace or add sensors at a fraction of the cost.
• No complicated TWAIN or 3rd party bridging
• Use full capabilities of your existing software including auto-acquisition
• Free 5-year limited warranty
• Unique ability to work side-by-side Dexis sensors in Dexis Imaging 9/10
• the most versatile, open-architecture for hassle-free integration
• Free Clio DI hardware tech support
• No annual fees

5-year Warranty
For 2 years, SOTA will repair or exchange parts or equipment due to manufacturer defect free of charge. As a complimentary service, with every Clio Digital X-ray Sensor purchase, sensors that do not fall under the 2-year warranty will receive significant discounts for five years.

Free 60-day SotaCare
From date of purchase, you will receive free unlimited tech support via phone, internet or video conference, free software upgrades, loaner sensors during any repair and free shipping, regardless of number of sensors.

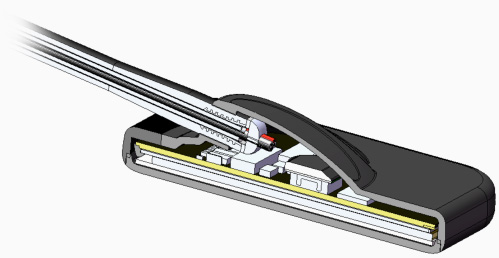

Clio Digital X-Ray Sensor Cross Section

Built to Outperform and Outlast the Competition
Our x-ray sensor is built to withstand the day-to-day wear and tear of your practice. The patented Kevlar reinforced cable helps prevent damage from coming to the digital x-ray sensor. Unlike other dental sensors our USB cable is fully replaceable, saving you from being forced to buy a brand new sensor if it breaks. Clio’s is one of the only digital x-ray sensors that is fully water submersible, allowing you to easily clean it helping with infection control.

Make Your Workflow Easy
Clio’s integration allows you to use our digital x-ray sensor with most major imaging software. With Clio, there are no disruptions to workflow with additional pop-ups or inconveniences. By integrating with your imaging software, our dental x-ray sensor is able to take advantage of your imaging software capabilities, making implementation and workflow easy.


Clio Digital X-Ray Sensor System



Clio Digital X-ray Sensors

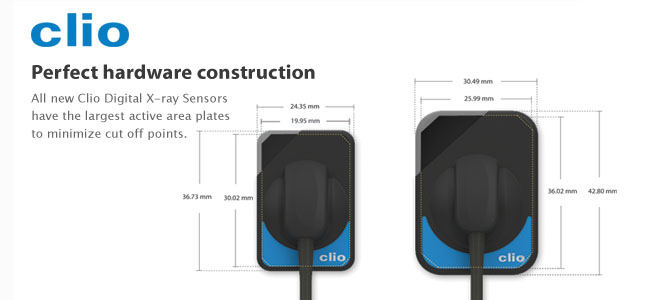

Size 1 Sensor Size 2 Sensor
External Dimensions 24.35 x 36.73 mm 30.49 x 42.80 mm
Active Area 19.95 mm x 30.02 mm 25.99mm x 36.02 mm
Sensor Plate Thickness 5.41 mm 5.41 mm
Sensor Cable Length 3 meters 3 meters
Image Resolution 26.3 lp/mm theoretical 20 lp/mm actual 26.3 lp/mm theoretical 20 lp/mm actual
Image Size 1580 x 1050 pixels 1896x1368
Image Pixel Size 19x19 microns 19x19 microns



Clio Digital X-Ray Sensor Size #1 W/ SOTA Image Software

reg $ 6,999   $ 5,497


Clio Digital X-Ray Sensor Size #2 W/ SOTA Image Software

reg $ 7,299   $ 6,599


Clio Digital X-Ray Sensor Package Size #1 & #2 W/ SOTA Image Software

reg $ 11,299   $ 10,199



Replacement Clio X-Ray Sensor # 1 $ 4,149

Replacement Clio X-Ray Sensor # 2  $ 4,849

Sensors include (Sensor, Sensor Positioning Set, Sensor Holder, Sample Pack 50 ea.
Sheaths, 5 Year Manufacturer’s Limited Warranty, Driver and Calibration File)


Support
Complimentary 60-day SOTA Care support with every Clio Digital X-ray sensor purchase. Begins from the date of first installation and training.

Sotacare Support Program (Best Value) $595/year after complimentary 60-day support support with a 1-year minimum subscription. Includes the following:

Free unlimited tech support via phone, internet or video conference (reg. $100 p/hour)
Free software upgrades (reg. $500)
Loaner sensors (reg. $300 for repair duration)
Free replacement shipping
Free round-trip shipping of defective sensors
Priced per office, regardless of number of sensors

Offices NOT enrolled in sotacare support will be charged for the following fees for support:

Tech support via phone, internet, or video conference- $100/hour
SOTA Image Software upgrade - $500
Loaner sensors - $300 during repair duration
Fees are subject to change.

Additional Details

All warranties start from date of purchase. Date of purchase is defined as the date on the original invoice.

Equipment failures due to manufacturer defect will be, at SOTA’s discretion, repaired or exchanged with replacement equipment of the same type free of charge during the first 2 years of the warranty. In addition, at any time during the first 5 years after purchase, the customer will be able to purchase replacement sensors or components of the same type at special significantly reduced pricing [contact SOTA Imaging for the current pricing details].

Failures will be determined at SOTA Imaging. Evaluation results determine options for replacement or repair.

Free replacement or repaired equipment is under warranty for the remainder of the original equipment’s 2-year warranty or 90 days whichever is greater.

Equipment failure due to obvious equipment abuse, misuse, neglect or improper care, can, at the manufacturer’s discretion, modify the terms or duration of this manufacturer’s warranty.

SOTA Imaging warrants that the products will at the time of shipment be free from defects in material and workmanship. This warranty will remain in force from the date of purchase (labor warranty not included). The warranty shall not apply to product or parts thereof which A) have been subject to abuse, misuse, negligence, accident or damage resulting from the use of cleaning, disinfecting, or sterilization chemicals and processes. B) to which any modifications, alterations for attachments have been made without written authorization of SOTA Imaging (manufacturer), C) if the x-ray exposure from the intraoral x-ray tube is higher than the recommended dosage during the course of the warranty period, or D) if the products are installed or operated violating instructions for safe use or in a location not free from excessive dirt, dust, moisture, fumes, or extremes of temperature, nor shall it apply to any products or parts thereof which E) are normally consumed in operation. F) The warranties contained herein extend to customer only and are not assignable or transferable.
