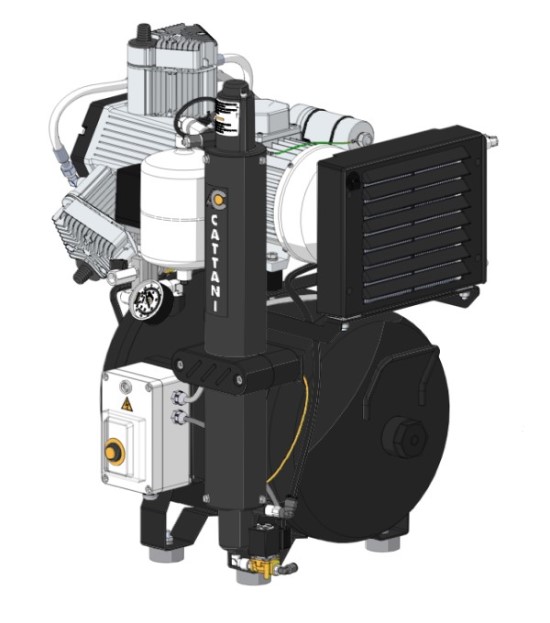

Cattani Single Head 3 cylinder Oiless Compressor

The CATTANI oil-free compressor (without oil lubrication) complete with drying system and a set of filtres, is capable of supplying dry compressed air of extremely high quality and purity. With the sterilising filter air is treated with an efficiency of 99.9999+% on 0.01 μm particles. We have chosen quality and reliability as  our emblems: this is why we can grant you a 3-year warranty. The Optional deadening plastic cover and the deadening box reduce noise by 10 and 20 dB

Specs:

3- users
With air dryer.
220volt
Single-phase motor 60 Hz - 1.75 kW - 12.2 Amp
Air tank=45 liters
Produced air with delivery pressure at 5 real
bar: 238 N l/min.
Sound pressure level 73.6 dB (A).
W=24.5in.  D= 21in.  H=30in.
Net Weight= 143lbs. Gross Weight= 174lbs
Made In Italy
3 Year Warranty

Cattani Dental Air Compressor Brochure

Cattani Single Head 3 cylinder Oiless Compressor

Reg $ 4,679   Call For Price

.

Cattani Dental Air Compreesor Model Selection
Selection of the Dental oil-less compressor will be in accordance with the type of rotary instruments
used by the dentist and with the overall demand of compressed air in the surgery, clinic or
hospital (page 6). A Dental/ Medical Air compressor cylinder produces approx. 60 l/min at a pressure of 5 bar, while the
instruments used continuously by a dentist do not normally exceed a consumption of 50/60 l/min
of air at a pressure of 2/3 bar. The capacity of the Air compressor should exceed consumption to allow for
the end-of-charge pauses needed for regeneration of the drying column. Charge losses along the
distribution line are generally due to the absence of a closed loop layout and to excessively small
pipe sections; we want to stress the importance of these characteristics which are often overlooked.
The closed-loop layout keeps pressure on the turbine constant. The pipework in insulated copper
keeps the air clean and prevents the formation of condensation along the entire distribution system.
As regards sound vibration, the Dental Air compressor can be supplied with plastic protective cover or cabinet. In
the first version, noise is reduced by about 10 dB (A), in the second by 20 dB (A). Use only enclosures
and covers supplied by the manufacturer. Machines sound proofed with other equipment will not be
covered by warranty. The cabinets and covers supplied by the manufacturer are designed not only to make the
unit more attractive and reduce sound vibrations, but also to serve as a means of protection from
and prevention of explosion and fire; these are rare events but the possibility cannot be excluded.
The two and three-cylinder compressors and the Blok-Jet are set at 6 to 8 bar. Setting operating
pressure to different values will affect the life of the compressor: the higher the maximum pressure,
the greater the strain and the wear of the machine.
